RESIDENTIAL CLIMATE
JUNG KNX Smart Climate
GHARGHUR, MALTA
Underfloor heating and Panasonic VRF air conditioning brought together through one JUNG KNX control system.
14
KNX KEYPADS
11
VRF ZONES
14
HEATING ZONES
1
CONTROL SYSTEM
THE PROJECT
Two climate systems, one way to control them.
The home used underfloor heating for winter and a Panasonic VRF system for cooling. Domotica Systems placed both on the KNX bus so each room has one consistent control point.
THE REQUIREMENT
Heating and cooling had to cooperate.
Different manufacturers and operating methods would otherwise leave the owners with separate controls. The design had to prevent both systems from working against each other.
KNX room control
14 heating zones
11 VRF zones
Gateway integration
Central cabinet
Matching accessories

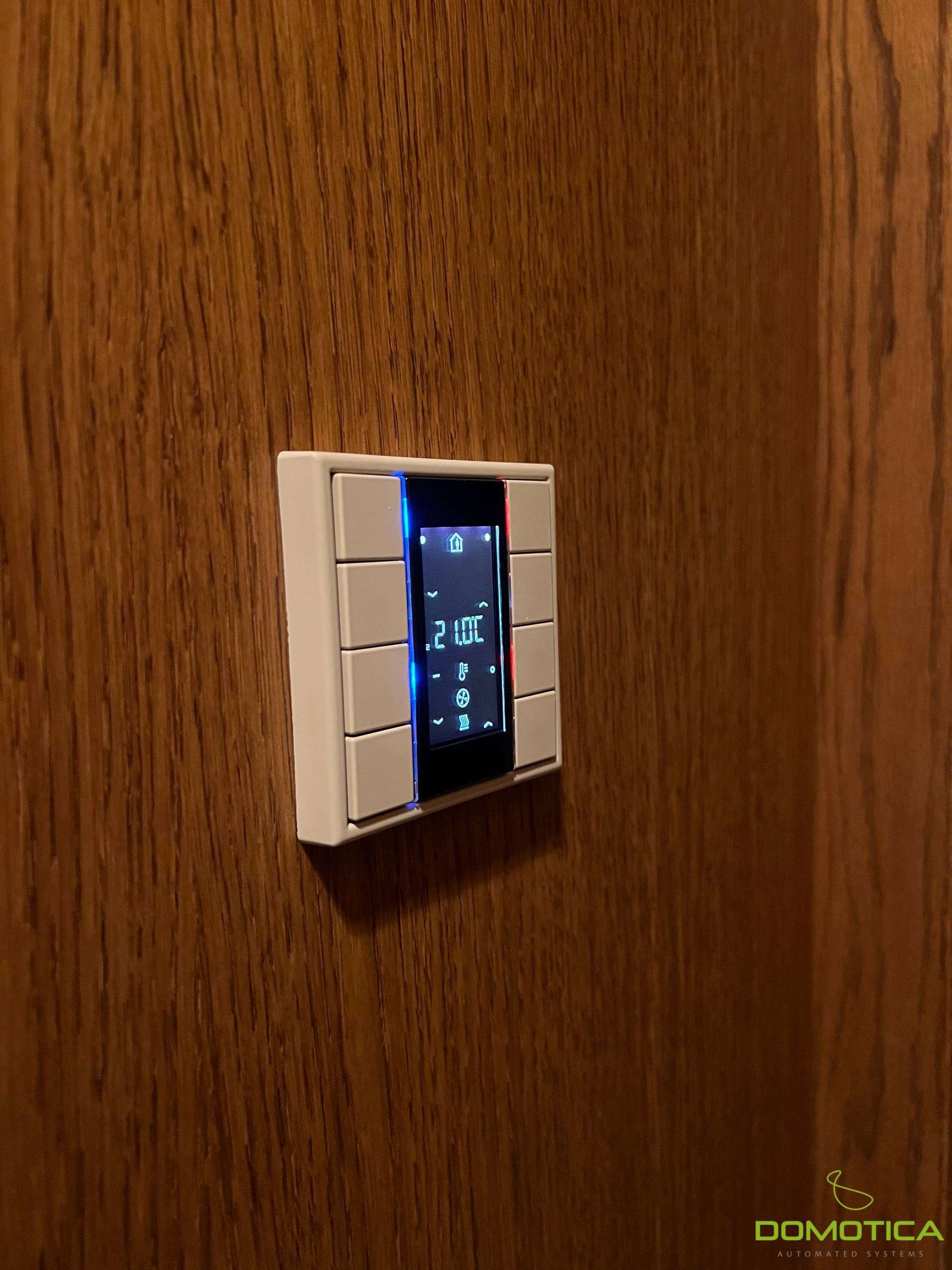

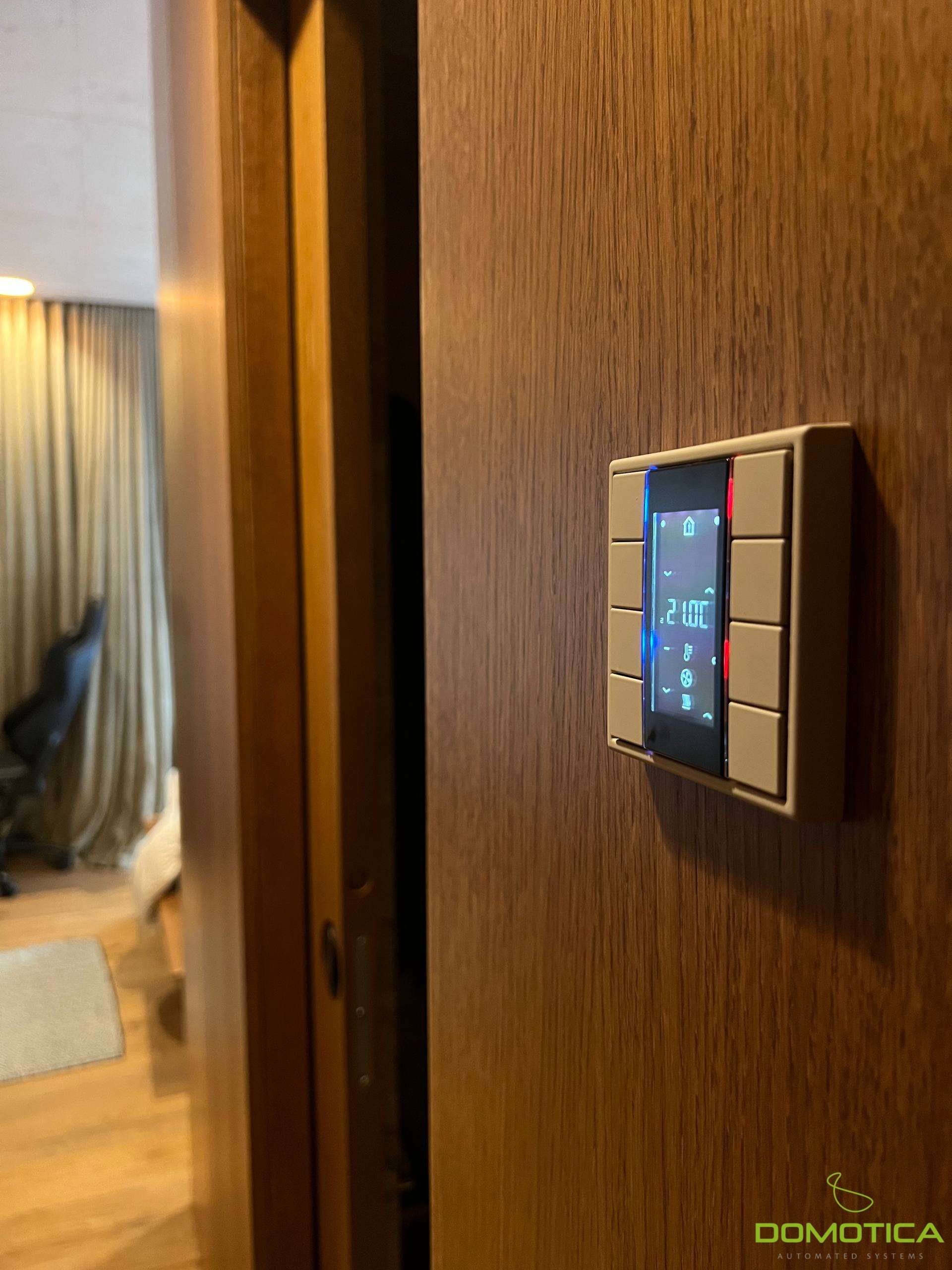

ROOM-BY-ROOM CONTROL
One JUNG keypad in every room.
The LS 990 KNX display shows the set temperature and provides heating, cooling, fan and mode control through the same familiar buttons throughout the home.

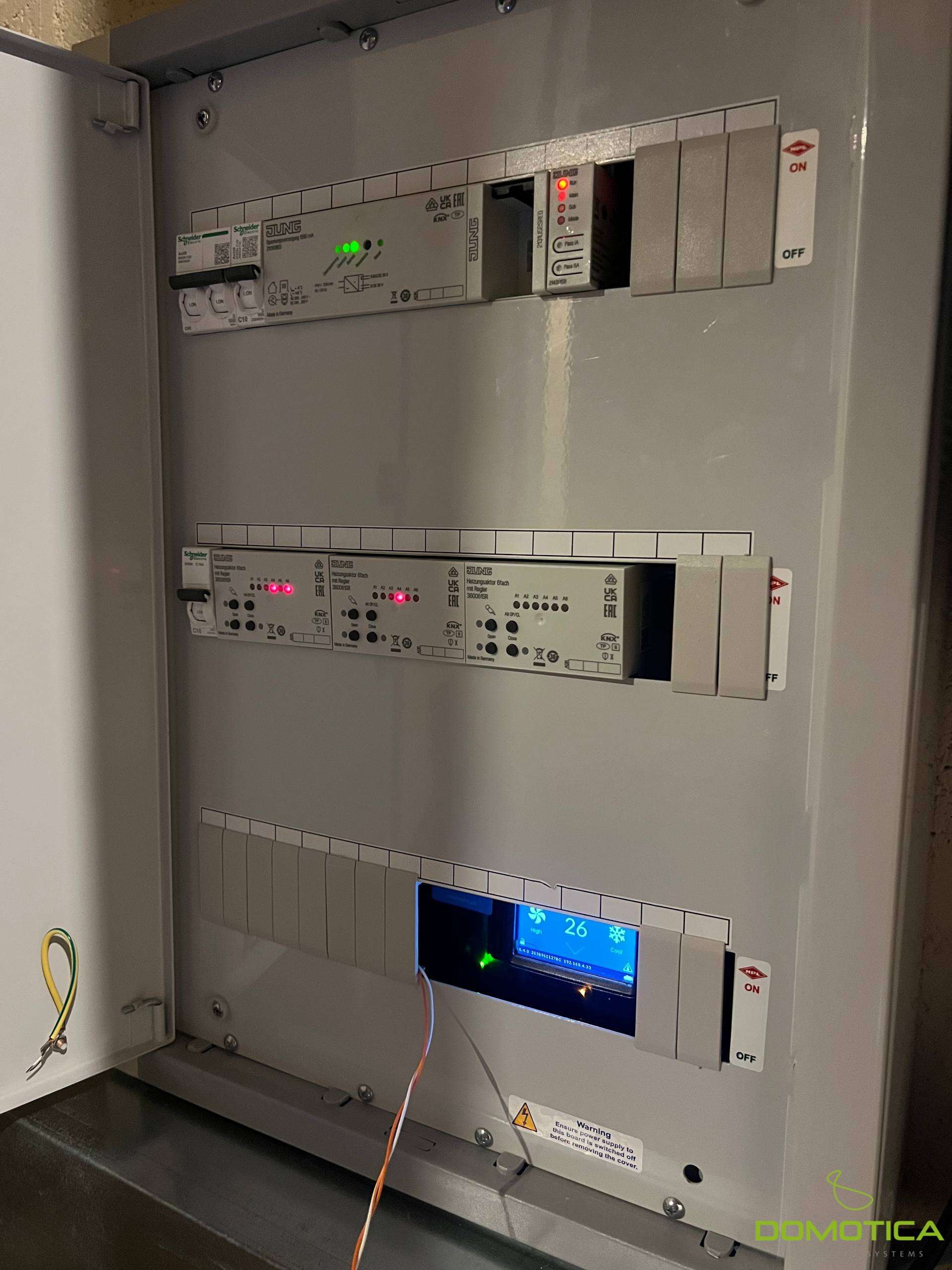

THE CONTROL CABINET
Heating actuators and VRF integration in one place.
JUNG KNX heating actuators operate 14 underfloor zones while a CoolMasterNet gateway connects 11 Panasonic VRF zones to the same bus.

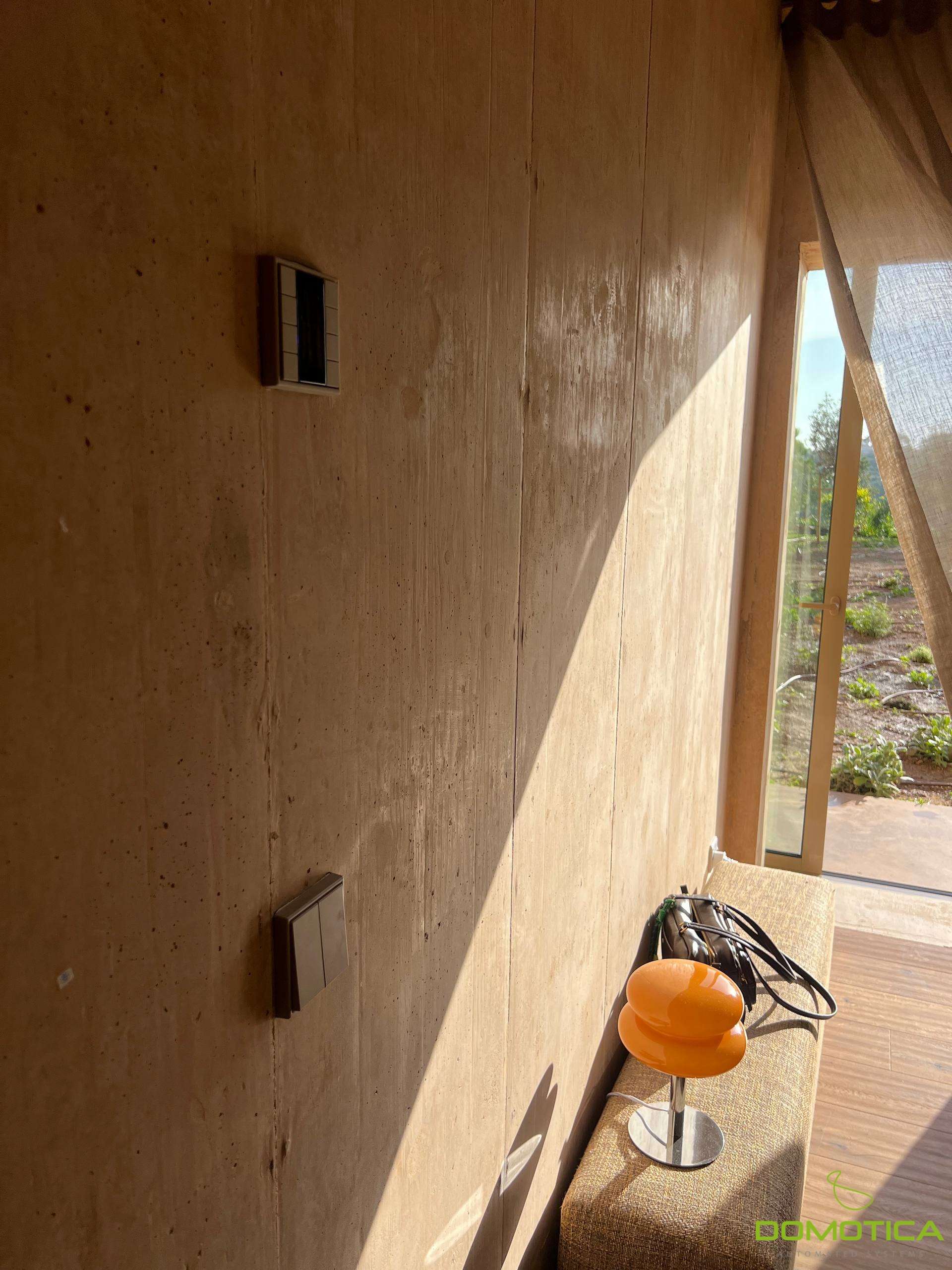

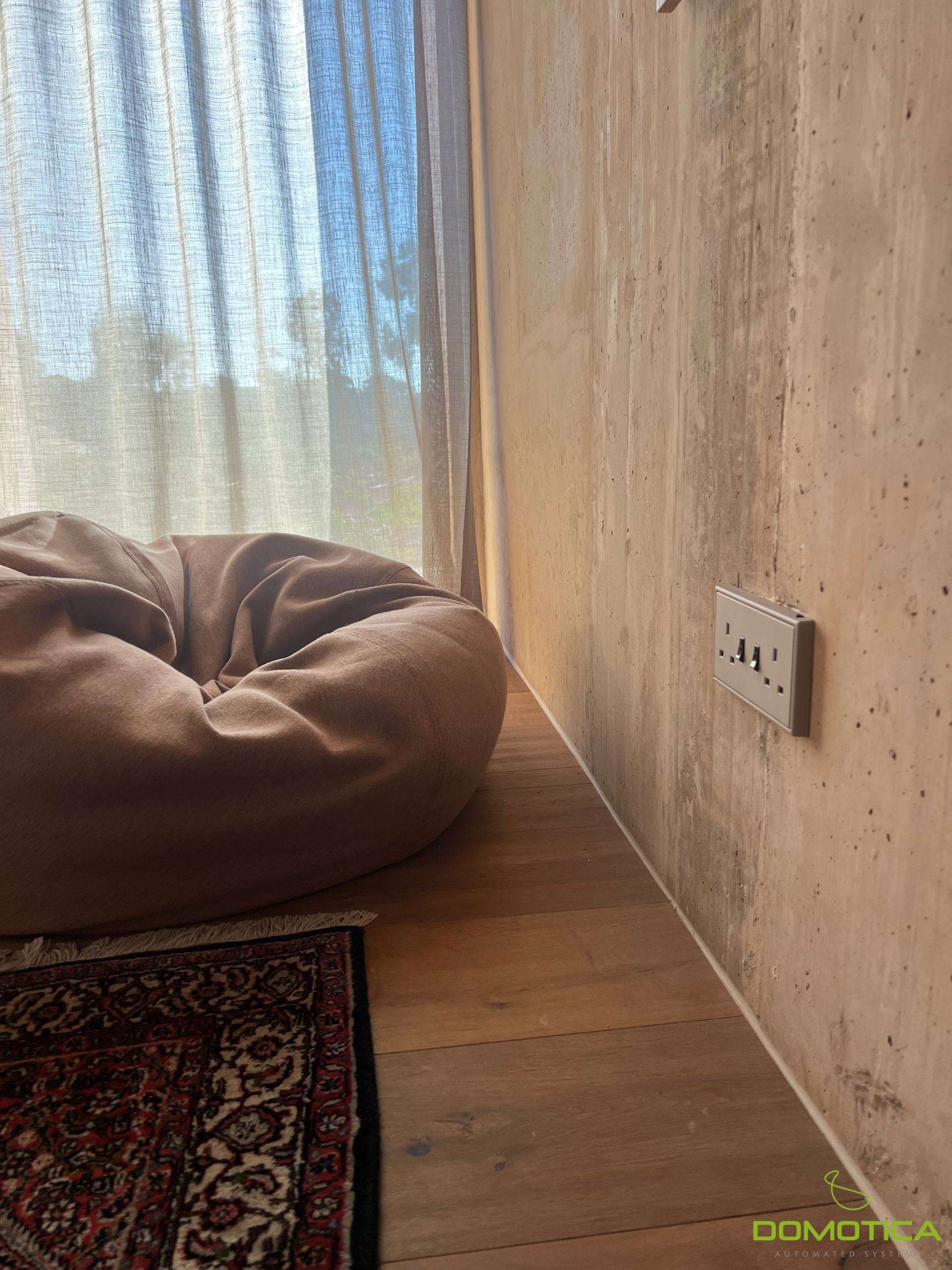

CONSISTENT DESIGN
The LS 990 family across every wall.
KNX keypads, standard switches and socket outlets share the same JUNG LS 990 design language and matching finishes throughout the residence.
PROJECT GALLERY
Inside the completed project.
Select the photograph to see it in full detail.
1 / 3
THE RESULT
Room-by-room comfort without competing systems.
The owners now set one target temperature from one keypad. KNX coordinates the underfloor heating and VRF system while preserving a consistent, architectural finish.
